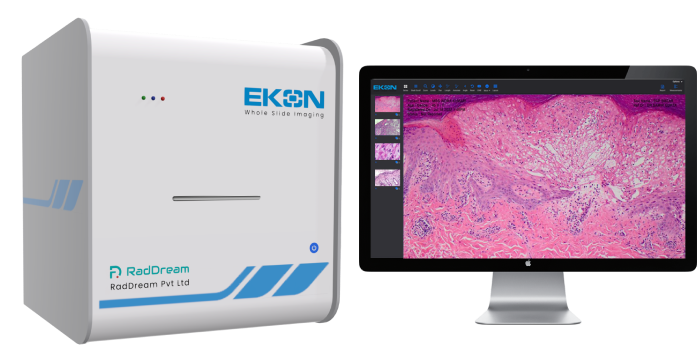

EKON Whole Slide Scanner

EKON Whole Slide Image (WSi) scanner is an advanced innovation with latest state of art technology in slide scanning. Whole Slide Imaging provides a novel technology where glass slides are scanned to produce a single digital image. The images are saved in TIFF format along with Patient data. There have been significant advances in whole slide scanning, the hardware and software that have been synchronized for better performance of the WSi Scanner. The whole slide images can be viewed in an inbuilt viewer, with provisions to annotate, measure and draw polygons. Whole slide imaging has become a reliable diagnostic tool for pathologists and scientists for clinical, educational & research purposes.

Features

Scanning
Scanning Area
Based on ROI Selection
ROI Selection
Auto and Manual
Scan time
120 seconds for 15 x 15 mm area
Stage Movement
X, Y & Z Axis
X : 75 mm
Y : 20 mm
Z : 5 mm
Image file format
File format
TIFF/JPG
Compression
Lossless compression
Image quality
High resolution
Application
In-built application for Patient management, scanning & viewing images
Optional Cloud storage

Technical Specifications

Slide
Slide type

- Cyto, Histo, Hemato, Micro

Slide thickness

- Any thickness

Regular scan slide area

- 15 mm x 15 mm

Slide loading capacity

- 4 Slides per tray

Slide Loading

- Manual loading

Slide Proprietary

- Any slide 75 x 25 mm (± 2 mm)

Microscope
Objective Lens

- 40X Infinity Corrected - Plan Achromatic

Scanning Time

- 120 seconds for 15 x 15 mm area

Sample Position

- Auto Loading & Auto Positioning

Focusing

- AI Assisted Auto Focusing

Oil Immersion

- Not Required

Light source

- LED 10 W

Camera
Camera

- 3 MP

File
File format

- TIFF/JPG

Image resolution

- 2048 x 1536 & 1680 × 1050

File compression

- Lossless Compression

Inbuilt System
Network adapter

- RJ 45 & USB 3.0

Processor

- High end processor

RAM

- 16 GB

Internal Storage

- 256 GB SSD

External Storage

- 4 TB Hard Disk

Monitor

- 18.5" HD

Cooling Methods

- 2 Internal cooling fans

Requirements
PC Requirements

- No

Operating temperature

- Upto 50°C

Power

- 110 to 240 AC Volts

Mouse & Keyboard

- External

Barcode / QR Code Printer

- Additional

Printer

- Additional

Calibration & Certification
White balancing Calibration

- Weekly

QC Check

- Auto check for every image

Certifications

- CE | ISO 9001:2015 | ISO 13485:2016

Warranty
Warranty

- 1 year comprehensive warranty
